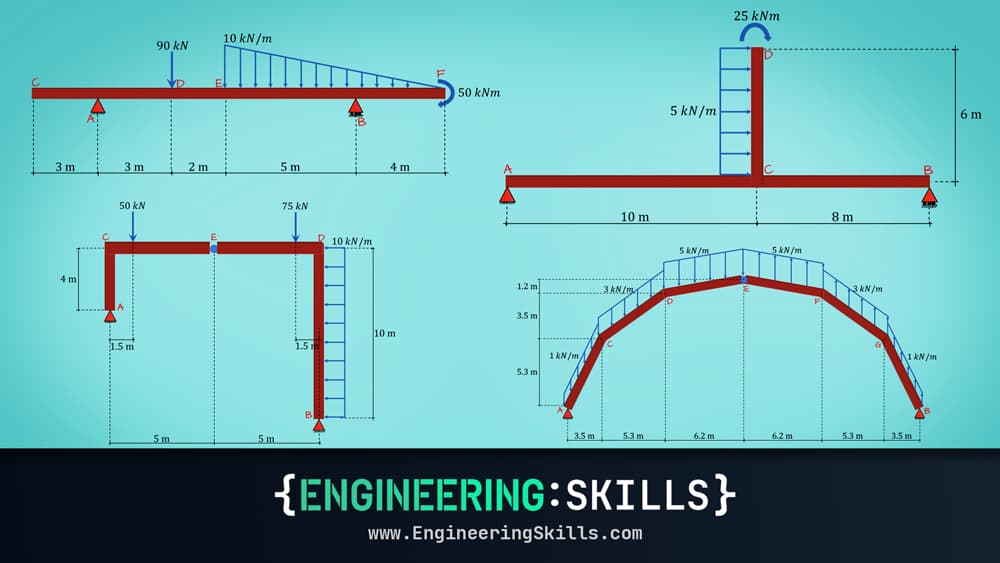

Shear Forces and Bending Moments: Analysis Bootcamp

Shear Forces and Bending Moments: Analysis Bootcamp

Sharpen your structural analysis skills with challenge questions designed to test your understanding.

⏰ 2 h 46 min | 12 lessons
Published: February 2018
4.75

Request student access to this course here

After completing this course...
You will have a reliable procedure for correctly determining shear force and bending moment diagrams.
You will be comfortable analysing both 1-dimensional beam and 2-dimensional frame structures.
You will be able to utilise pre-existing pin-joints in structures to facilitate your analysis.
You will have further deepened your understanding and intuition for structural behaviour
COURSE OVERVIEW

After completing the parent course, Mastering Shear Force & Bending Moment Diagrams, what better way to confirm you truly have mastered the techniques, than testing yourself against 10 fresh challenge questions?

Honing your structural analysis skills requires practice. There is no shortcut for sitting down and implementing your solution strategies on unfamiliar questions.

Finding challenging questions complete with detailed solutions can be difficult. In fact, one of the most frequent requests I receive from my civil engineering students is for more worked examples.

In this course, I have developed 10 questions with detailed solutions explaining the thought process and logic behind their solution. In each solution video I explain in detail how I’ve used the techniques you’ve been taught previously to construct the shear force and bending moment diagrams.

I have developed this question set to cover all of the common and not so common statically determinate structure types. We will address, beams, frames, structures with internal pin-joints and inclines members, all things you’re likely to come across as a civil or structural engineer.

The course is developed around the concept of problem based learning. To get the most out of the course you should attempt a question and iterate on your solution until you converge on the correct one.

This way you learn by working your way through each problem – hence the name problem based learning! Only at the end should you watch the accompanying video to check the reasoning behind your solution.

Completing this Shear Forces and Bending Moments Analysis Bootcamp is a great way to wrap up your study of shear forces and bending moments, leaving you well placed to move on and tackle more advanced analysis techniques.

Who this course is for

  • Ideally you should have completed my ‘Mastering Shear Force & Bending Moment Diagrams’ course before taking this course
  • To get the most from this course, you should have an understanding of what shear force and bending moment diagrams are. In this course we’ll be focusing on getting the reps in and implementing a solution strategy.
Section 2
Challenge Questions
2. Challenge Question 1 📂
20:50 (Preview)
3. Challenge Question 2 📂
16:01
4. Challenge Question 3 📂
14:24
5. Challenge Question 4 📂
28:34
6. Challenge Question 5 📂
05:58
7. Challenge Question 6 📂
10:58
8. Challenge Question 7 📂
16:06
9. Challenge Question 8 📂
12:39
10. Challenge Question 9 📂
23:35
11. Challenge Question 10 📂
13:17
Section 3
Course wrap up
12. Wrap up and debrief
01:47
Completion certificate
Completion certificate
  • Download your personalised Certificate of Completion once you’ve finished all course lectures.

  • Applying for jobs? Use your Certificate of Completion to show prospective employers what you’ve been doing to improve your capabilities.

  • Independently completing an online course is an achievement. Let people know about it by posting your Certificate of Completion on your Linkedin profile or workplace CPD portfolio.

Ready to get started?
getting-started
Dr Seán Carroll
BEng (Hons), MSc, PhD, CEng MIEI, FHEA
Hi, I’m Seán, the founder of EngineeringSkills.com (formerly DegreeTutors.com). I hope you found this tutorial helpful. After spending 10 years as a university lecturer in structural engineering, I started this site to help more people understand engineering and get as much enjoyment from studying it as I do. Feel free to get in touch or follow me on any of the social accounts.

Do you have some knowledge or expertise you'd like to share with the EngineeringSkills community?
Check out our guest writer programme - we pay for every article we publish.
You Might Also be Interested In...

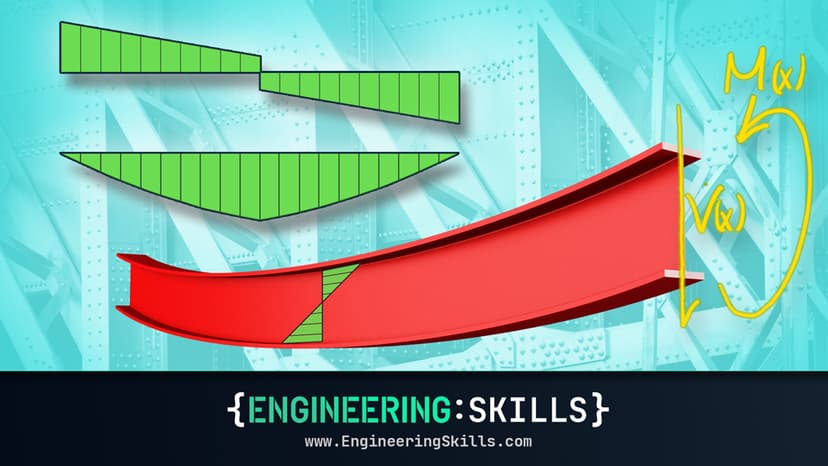

Mastering Shear Force & Bending Moment Diagrams
